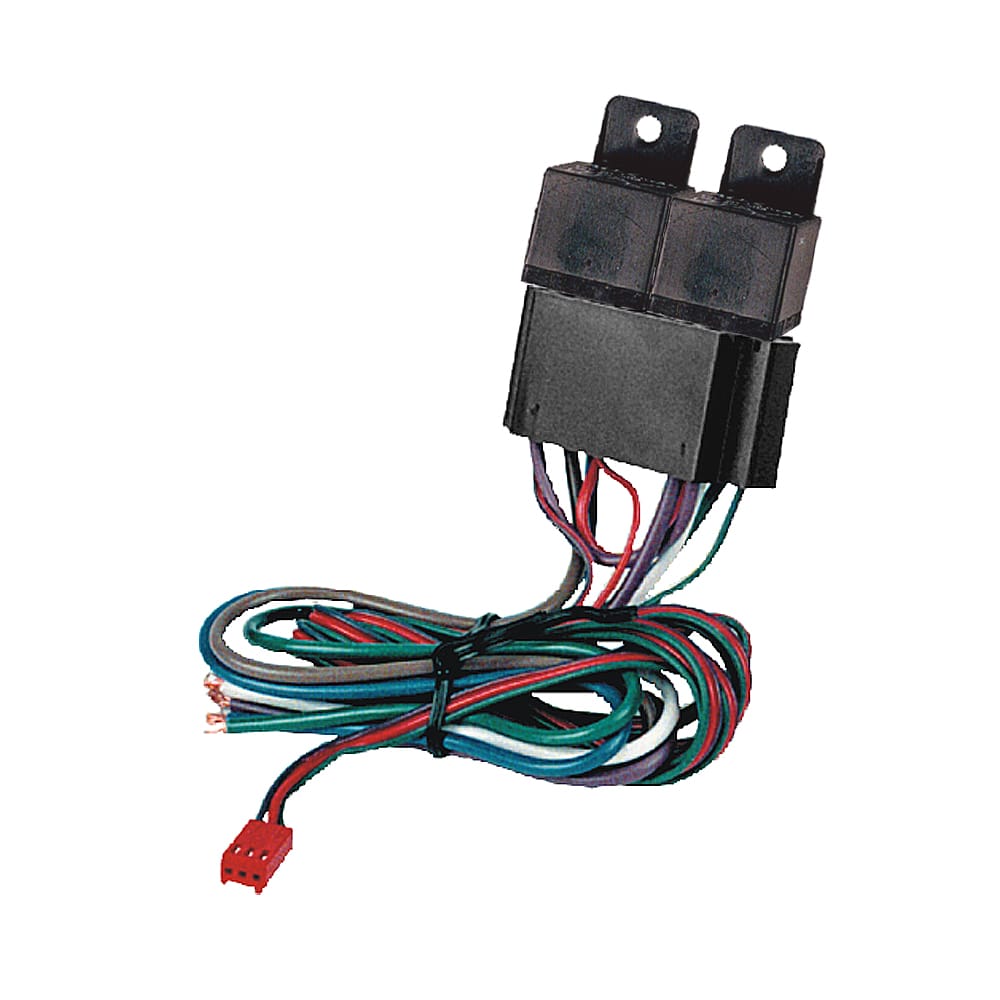

DLS-7 – High Current Doorlock Relay Pack

DLS-7 Universal Door lock Interface

The DLS-7 is the industry standard in analog door lock interfacing! It features 20/30 relays and all copper wiring to exceed OEM standards and handle just about any door lock system.

Features:

• Two 20/30 relays included
• Wiring diagram included
• All copper wiring – highest quality

Supported Door locking systems:

• Negative pulse
• Positive pulse
• Reversal rest at ground aka “5 wire”
• Reversal rest at positive
• MUX/Single wire (resistors not included, see AU-VR20W)
• Vacuum (Old Mercedes – requires 3 second pulse from keyless entry entry)
